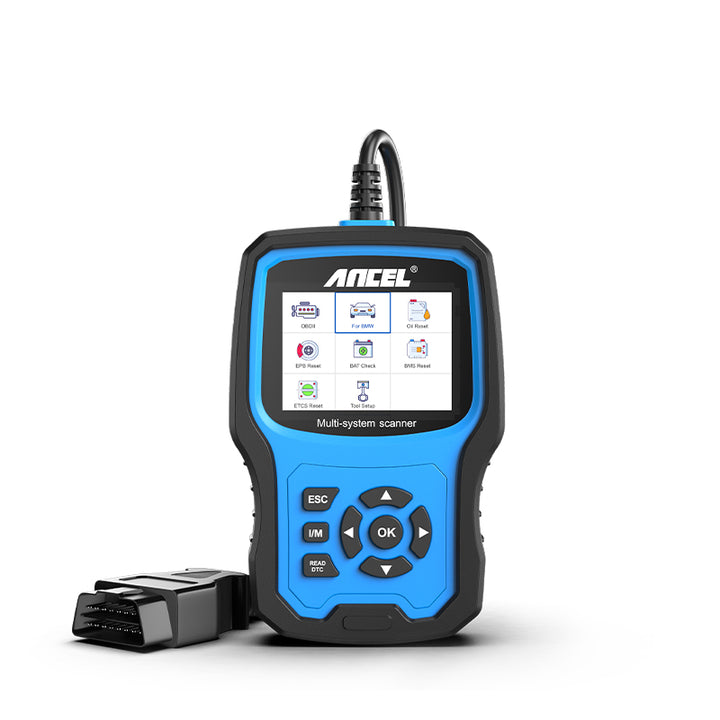

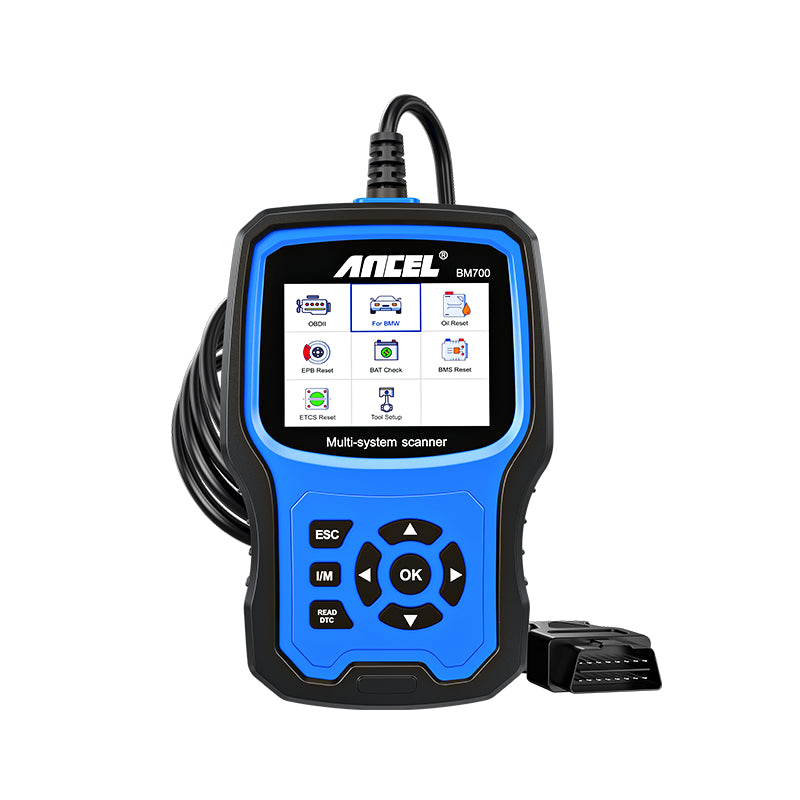

ANCEL BM700 Vollsystem-Autoscanner CBS ABS ASC Reset für BMW

$148.99 USD $109.99 USD 26 %
Melden Sie sich an, um die Wunschliste zu verwenden

paypalvisavisaelectronmastermaestrodiners clubjcbdiscoveramerican expressunionpayshopify payapple paygoogle payklarnabancontactideal
Order in the next [totalHours] hours %M minutes to get it between and

    Full OBD-II Modes

    OBD-level diagnostics for all car brands

    Full OBD-II Modes

    OBD-level diagnostics for all car brands

    All System Scan Tool

    In-depth diagnosis of all available modules

    All System Scan Tool

    In-depth diagnosis of all available modules

    Designed for BMW Diagnosis

    Only works with BMW's deep reset service

    Designed for BMW Diagnosis

    Only works with BMW's deep reset service

    Extensive Compatibility

    Compatible with most 1996 to present vehicles

    Extensive Compatibility

    Compatible with most 1996 to present vehicles

    Easy to Use

    Complete operating instructions & user-friendly UI

    Easy to Use

    Complete operating instructions & user-friendly UI

    BMW Battery Registration

    It is necessary to perform the battery reset function when the damaged or aging car battery is replaced with a new battery. If the replaced new battery and the old battery use different technologies, the device cannot support it.
    Warm prompt: This device does not support modify the battery specifications, such as battery type and capacity.

    Cautions:
    1.E46\E39\E38\E83\E53\E36\E85\E86\MINR52\R53\R50
    These chassis are not required for battery registration, just replace the batteries directly.
    2. It is recommended that the aftermarket replacement battery has the same specifications, such as capacity and type, as the battery used in the vehicle. If the original battery is replaced with a different battery type (e.g., a lead acid battery is replaced with an AGM battery) or a battery with a different capacity, the vehicle may need to be reprogrammed to the new battery type in addition to performing the battery reset.

    Steps:
    First, turn on the dashboard but do not start the engine or the battery reset cannot be performed.
    Second, connect the device to the car properly, then select the correct model chassis (chassis number: you can open the hood and look at hydraulic support rod)
    Select special functions, then battery management, then register battery replacement, the service function is completed when a message appears that the battery replacement has been successfully recorded.

    SAS Calibration

    Steering angle sensor calibration allows you to perform calibration of the steering angle sensor.It permanently stores the current steering wheel position as straight-ahead in the sensor EEPROM. After calibrating the sensor successfully, its fault memory will be automatically cleared.

    Airbag Reset

    It can read and clear DTCs, show definitions of each code, display live data of multiple sensors in the graph to locate fault causes, and assist home mechanics to do the proper repair and clear SRS Airbag warning lights.

    DPF Regeneration

    The DPF function allows you to carry out numerous functions on the Diesel Particulate Filter system. The tool will retrieve/erase DPF-related codes, reset the DPF light after the filter has been replaced, micromanage the injection rate, and burn off collected particles when a maximum fill level is reached.

    ABS Bleeding

    ABS Bleeding---Whenever you change a part of the brake system, you will need to bleed the brake system afterward.

    Transmission Learn

    Reads and clears fault codes, displays live transmission system data (fluid temperature, dutch actuation, pressure, etc.), and ensures transmission performance is optimal for vehicle speed and load.

    Oil Service Reset

    Reset the Oil Life Reminder (turn off the Oil Service Light) when the replacement of engine oil is done in case of the impurities in oil may damage the engine. So vehcles can recalculate another optimal oil life change interval depending on the vehicle driving conditions and climate. Your driving safety also gets ensuring.

    Injector Coding

    After installation of new injectors or replacement is complete, code the new injector numbers to replace the old injectors.

    EPB Reset

    The BM700's EPB reset function is a valuable tool for DIY mechanics and professionals working with BMWs and other supported vehicles. It simplifies brake maintenance tasks, enhances safety, and ensures the electronic parking brake system operates correctly, it can save time and avoid the complications that come with manual EPB system resets.

    Step 1: Do not step on the brakes, press the start button three times in succession to enter the diagnostic mode (the instrument will prompt);
    Step 2: Release the electronic handbrake, do not step on the brakes;
    Step 3: Execute the brake pad replacement function and activate the installation position.

    All System for BMW Diagnosis

    Reset Service interval indicator:
    Oil service,Inspection, Time interval, Correct follow-on service,Display service interval status

    CBS Reset:
    Engine oil,Spark plugs,Front brakes,Rear brakes,Coolant,Diesel particle filter,Brake fluid,Microfilter,Vehicle inspection,Exhaust emission inspection,Vehicle check.

    CBS Correct:
    Engine oil, Spark plugs,Front brakes,Rear brakes,Coolant,Diesel particle filter,Brake fluid, Microfilter,Vehicle inspection, Exhaust emission inspection,Vehicle check.

    DME/DDE engine special function:
    IQA, Idle speed adjustment, fuel injection rate, CO adjustment, Clear adaptions, Learn Valvetronic limit positions, Exhaust gas recycling, DPF Regeneration, Replace DPF

    ABS/ASC/DSC special functions:
    bleeding routine, Mix-up checks, brake lines, Adjustment steering-angle sensor

    EGS Clear adaptions

    Battery Management
    Register battery replacement, Evaluate battery charge state

    EPB Electronic Parking Brake
    Matching procedures, repair shop mode (replacement of brake pads), initialization

    Adjustment steering-angle sensor

    F Chassis fuel pump reset

    ACSM/airbag ECU reset

    RDC TPMS ECU reset

    Full OBDII Modes & Wide Compatibility

    Allows you to easily diagnose engine problems and turn off the warning light. It can not only accurately determine codes and possible causes, but also perform OBD test modes such as live data stream, EVAP system test. Live parameters display sensor data of your vehicle in order to better understand your car. The BM700 give you the power to make more informed decisions at the repair shop.

    1. Read & Clear fault codes
    2. Turn off fault light

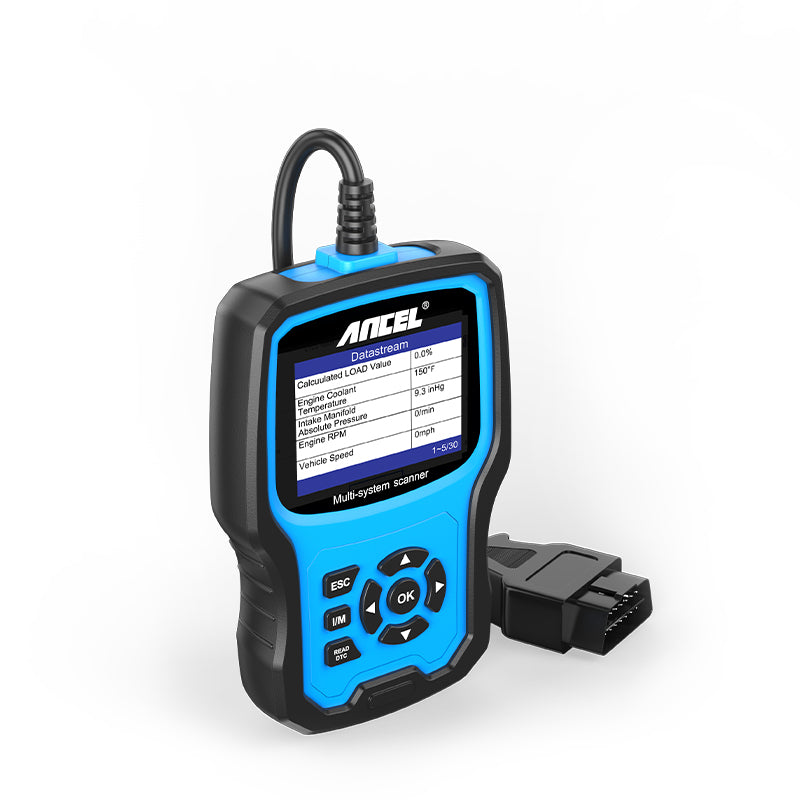

    3. Read data stream
    4. I/M Readiness test
    5. Smog emission test
    6. Evap System Test
    7. Vehicle Information

    The BM700 is also one of the most compatible OBD-I OBD-II scanners, supporting both modern as well as older car models of BMW from 1987-1996 with OBD I ports. Works with every gas-powered vehicle 1996 and newer.

    Car Support List

    1 Series Chassis: E81/E82/E87/E88/F20/F21/F52

    2 Series Chassis: F22/F23/F45/F46/F87

    3 Series Chassis: E30/E36/E46/E90/E91/E92/E93/F30/F31/F34/F35/F80/G20

    4 Series Chassis: F32/F33/F36/F82/F83

    5 Series Chassis: E28/E34/E39/E60/E61/F07/F10/F11/F18/F90/ G30/G31/G38

    6 Series Chassis: E24/E63/E64/F06/F12/F13/G32

    7 Series Chassis: E23/E32/E38/E65/E66/E67/E68/F01/F02/F03/F04/G11/G12

    8 Series Chassis: E31/G14/G15/G16

    X Series Chassis: X1 E84 F48 F49/ X2 F39/ X3 E83 F25 G01/ X4 F26 G02/ X5 E53 E70 F15 F85 G05/ X6 E71 E72 F16 F86/ X7 G07

    Z Series Chassis: Z1 E30/ Z3 E36/ Z4 E85 E86/ Z4 E8/ Z8 E52

    I Series Chassis: I3 I01/ I8 I12

    MINI Series Chassis:
    R50/R52/R53/R55/R56/R57/R58/R59/R60/R61/F54/F55/F56/F60

    Rolls-Royce Series Chassis: RR1/RR2/RR3/RR4/RR5

    Multi-languages Support

    Supports 12 different languages: English, French, Spain, Russian, Italy, Portugal, German, Suomalainen, Polish, Dansk, Svenska, Noska Sprak

    Certification Report

    Item have CE, FC, RoHS and a series of certifications, can be used with confidence, without worrying about quality problems.

    Lifetime Free Update

    The BM700 supports lifetime free software upgrades, new parameters, functions and the latest vehicle data are constantly updated via the USB2 port over the Internet.

    Lifetime Tech Support

    You can submit your issues with detailed files & attachments in real-time. ANCEL professional technician will reply you after check the details.

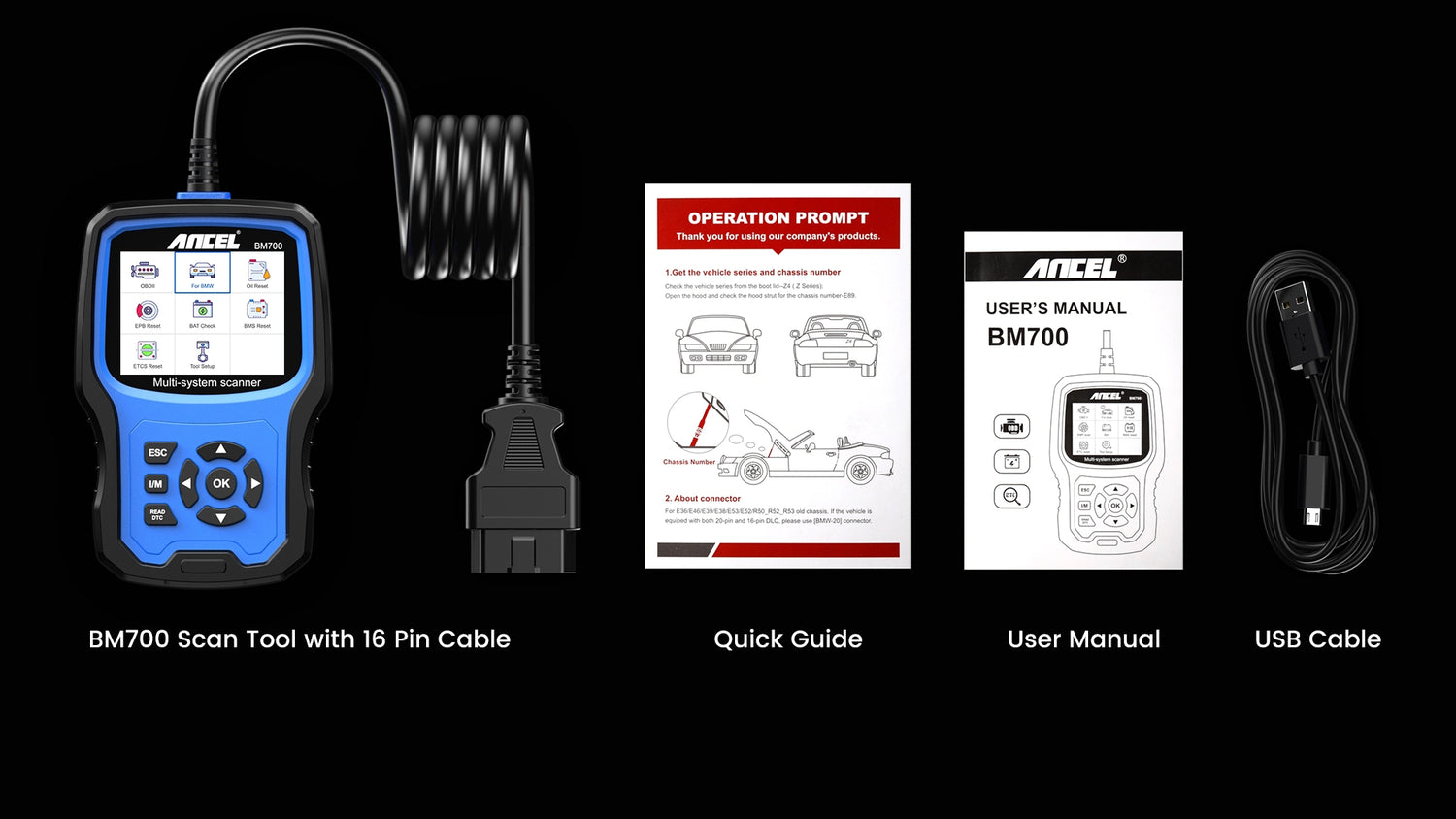

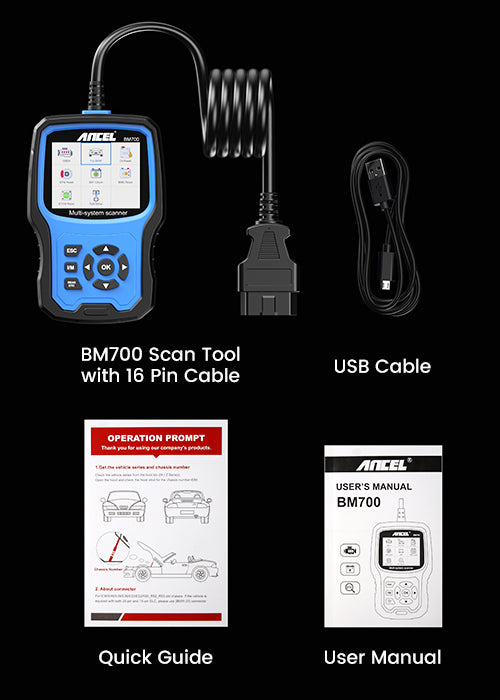

    What's in the box?

    BM700 Scan Tool with 16 Pin Cable x 1
    Quick Guide x 1

    USB Cable x 1
    User Manual x 1
