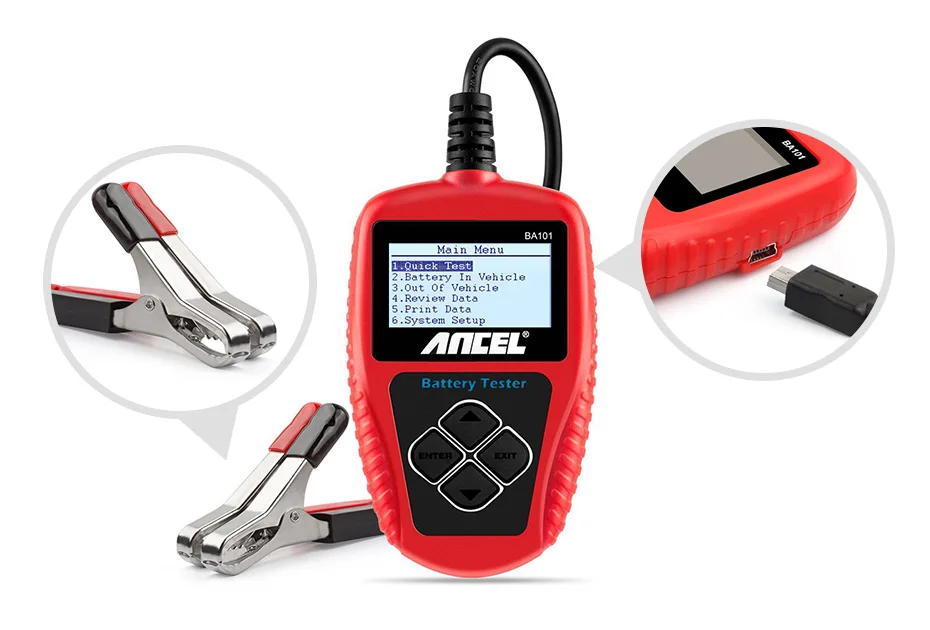

ANCEL BA101 12V 100-2000 CCA Car Battery Tester Charger Tools
Top Reason to Chose Ancel BA101 Car Battery Tester
1. Accurate tester result in miliseconds (tolerance ±15)
2. BA101 can test CCA100-2000, 30-220Ah, which is the highest CCA in the market
3. Test batterues on and off the vehicle
4. Battery life analysis, Life in percentage (%),Internal resistance value (m),Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
5. Test result based on JIS, EN, DIN, SAE and IEC standards.
6. Easily read LCD screen display
7. Quick test - input battery volume (AH), then it can show the battery status.

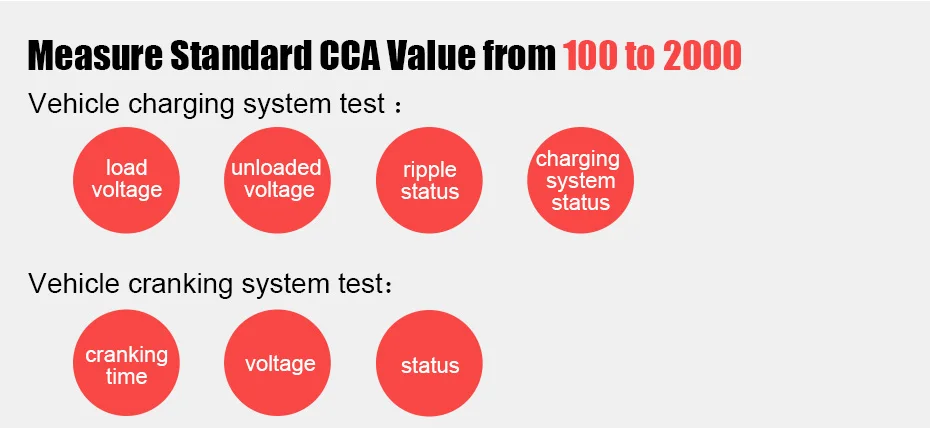

8. vehicle cranking system test - cranking time, voltage and status.

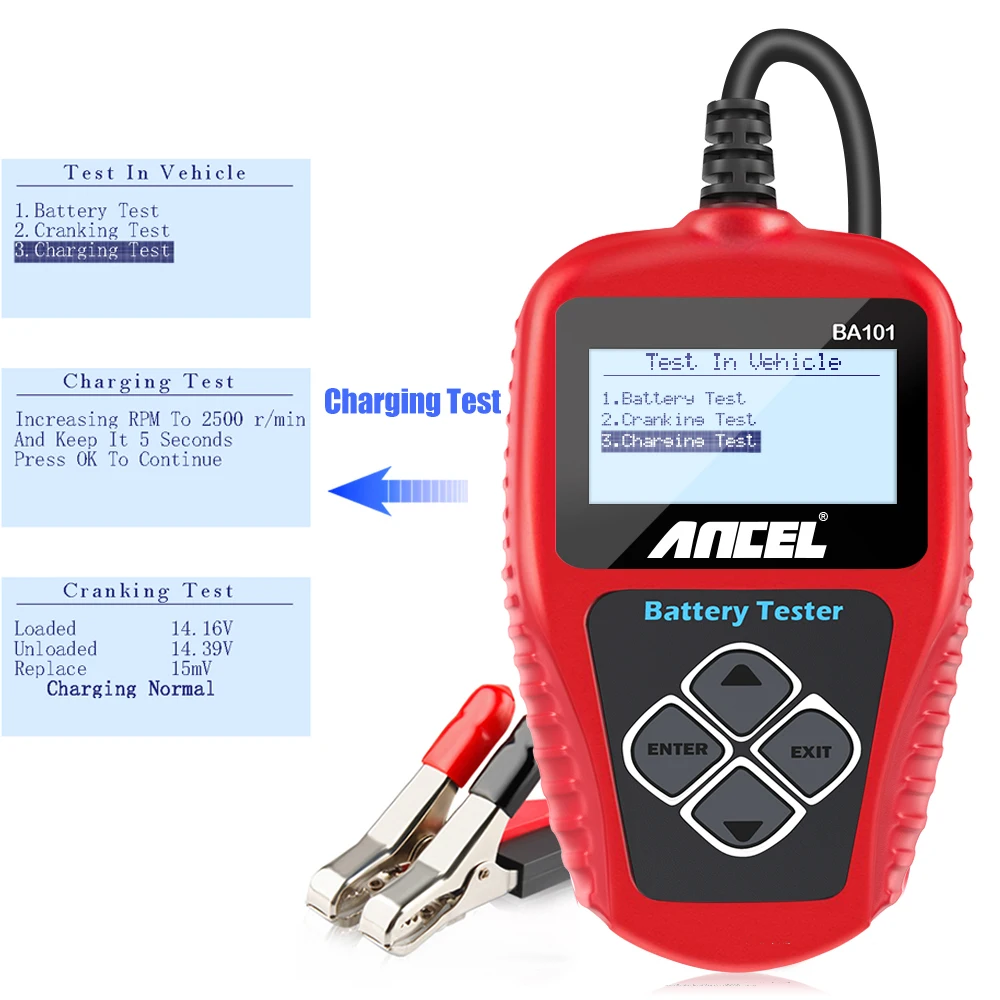

9. vehicle charging system test - load voltage, unloaded voltage, ripple status and charging system status.
10. Store the testing result, print function
Notice:
the device don't need charge.The USB port is only for printed data, when you connect the USB port, the device screen is in white color, it's normal, not quality problem.
Ancel BA101 Two Built-in Multi-Language Version
1.European Version: English, Spanish, French, German, Italian, Polish 2.Asian Version: English,Japanese, Korean, Chinese
ONE-CLICK QUICK TEST
It can make sure the battery status, including voltage, CCA, electronic resistance, rated CCA, charging value, healthy value and testing result in one second. Once input the AH value—battery rated capacity, which is marked in the label of the battery. 1). Press UP/DOWN key to select the Quick test, then press ENTER key to confirm. 2). Input the rated battery capacity—xx AH, in general, the battery capacity for 12V vehicle is above 30AH. 3). Then press enter key, the testing result will show one of these, as below Battery test result includes 5 types as following:

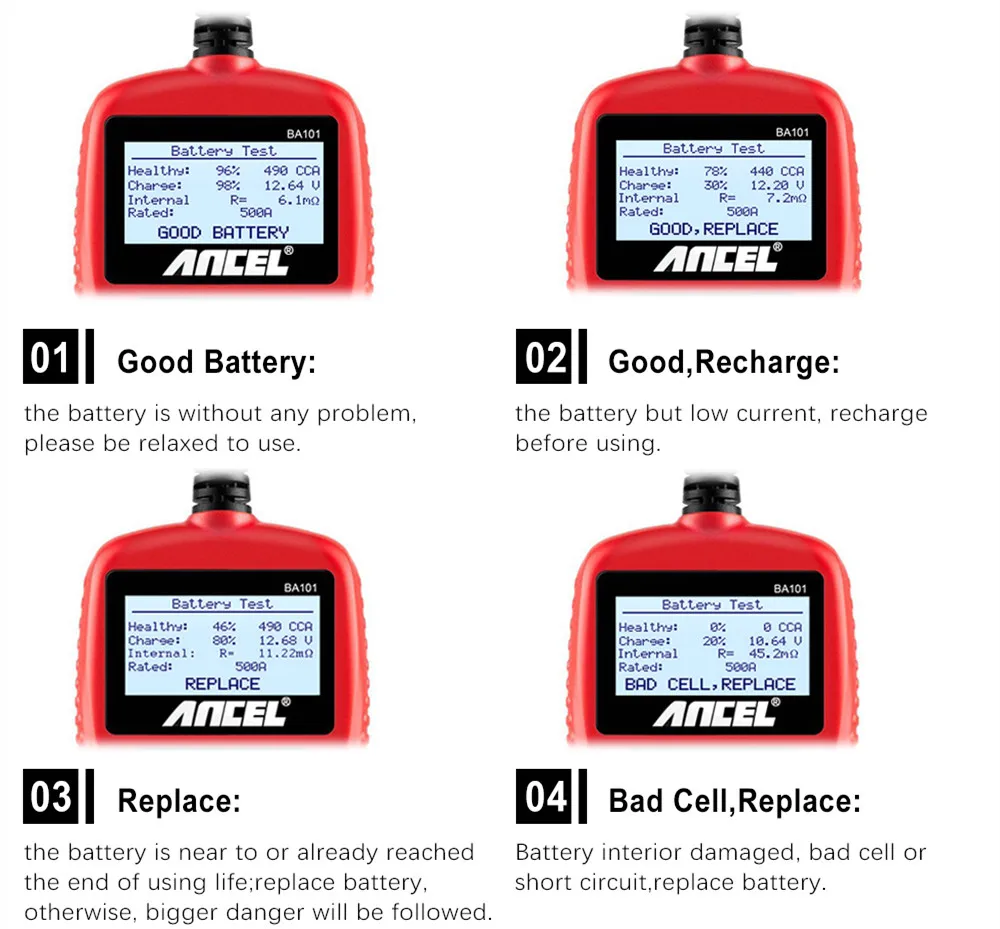

Ancel BA101 Battery life analysis and result
1.Good Battery: The battery is without any problem, please be relaxed to use 2.Good Recharge: Good battery but low current, recharge before using. 3.Replace: The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed. 4.Bad Cell,Replace:Battery interior damaged, bad cell or short circuit, replace battery. 5.Charge-retest:Unstable battery shall be recharged and retested to avoid error
Test interface display
Ancel BA101 Car Battery Tester Operating Parameters
1.System voltage: 12 Volts 2.Input voltage range: 9V~15V 3.Power requirements: No internal batteries required. Power on when hooked up during testing. 4.AH range: 30-220AH
Ancel BA101 Car Battery Tester Application
Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.

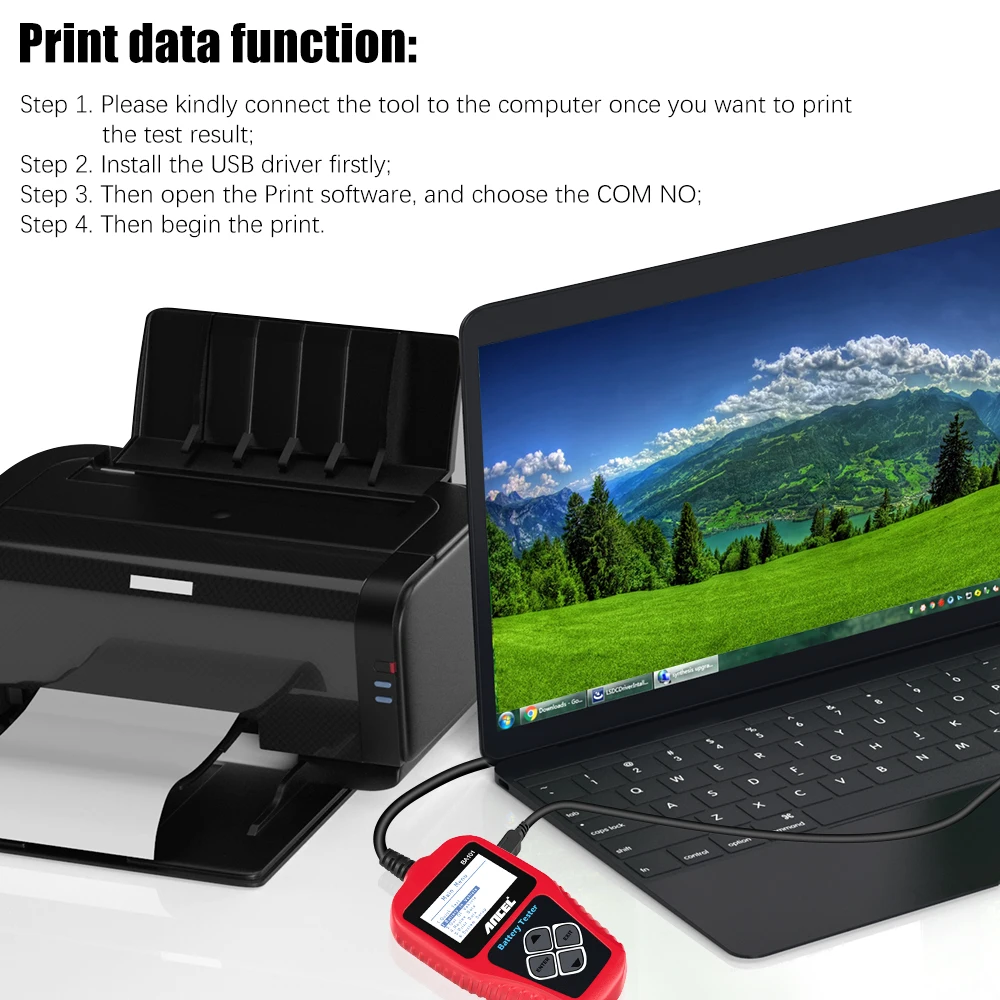

Ancel BA101 Test Data Print Out for WIN7
1.Please leave us email address to get the print out drive and software for laptop or download in Our Ancel official net : https://www.anceltech.com/
Product Qualification
Product Details
Product Size
Package list
1* Ancel BA101 1* User Manual 1* USB Cable
