ANCEL HD3100 Full System Heavy Duty Truck Scan Tool Diesel Diagnostic OBD2 Scanner Code Reader for Freightliner Peterbilt Kenworth Ford Volvo Mack International

The ANCEL HD3100 is a diesel diagnostic tool specially developed according to the characteristics of the American diesel vehicle market. Its models cover the eight major diesel models in the US market: Freightliner, Kenworth, Peterbilt, International, Mack, Ford, HD Volvo etc. With this tool, you can easily read/delete fault codes and analyze real-time sensor data. And, it covers the engine, gearbox, ABS (brake) and chassis or body control of all major trucks.

This Ancel HD3100 is a full system diesel truck scanner diagnostic tool, which allows you to read codes, clear codes, retrieve vehicle information and graph live data stream for all available control modules

ANCEL HD3100 support 12V/24V Truck and 12V Cars

Please enter the menu “OBD-II” if you want to diagnose 12V cars.
Please kindly note that you should enter the menu "Diesel OBD" if you want to diagnose heavy-duty trucks.

Support Full OBD2 Function

1. Read and clear fault codes, turn-off malfunction indicator light (MIL)
2. O2 sensor test to check fuel efficiency and vehicle emission
3. Display freeze frame data and retrieve vehicle information
4. EVAP test for fuel tank system (Carbon canister test)

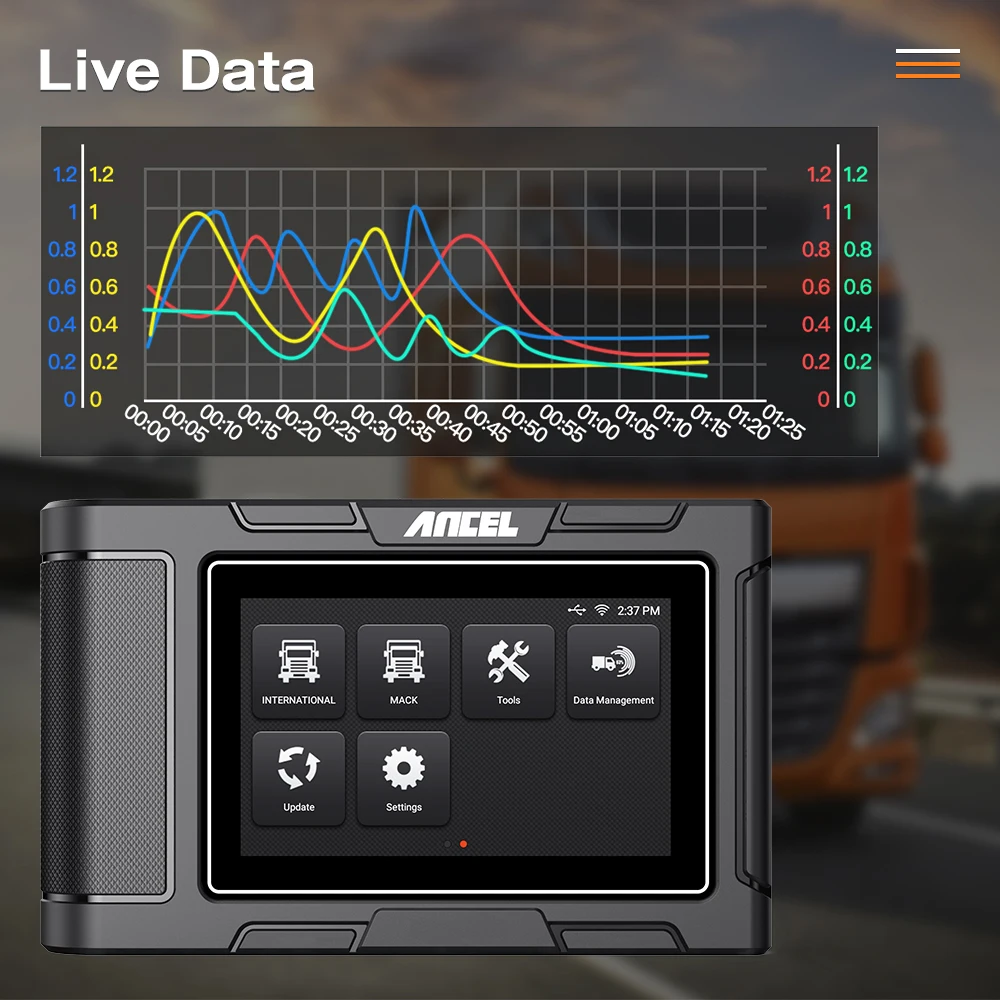

5. Read dynamic live data stream, able to store and playback
6. Display I/M readiness status (Non-continuously monitored system test )
7. Advanced On-board monitoring test
8. Support lifetime free upgrade

For SAE J1850PWM, For SAE J1850 VPW, For IS0 14230-4, For IS0 9141-2, For IS0 15765-4, For SAE J1708, For SAE J1939, OBDII
Support standard OBDII protocol cars, like the following cars.

Car (Europe): For Audi, For Bentley, For BMW, For Fiat, For Jaguar, For Land Rover, For Mercedes Benz, For Mini, For Porsche, For SAAB, For Smart, For Sprinter, For Volvo, For VW

Car (Asia): For Acura, For Dawood, For Honda, For Hyundai, For Infiniti, For Isuzu, For Kia, For Lexus, For Mazda, For Mitshubishi, For Nissan, For Scion, For Subaru, For Suzuki, For Toyota;

Pickup (or Van): For Silverado, For Coronado, For Ford (F150-750), For Ford E-series, For Dodge RM 1500-5500, For GMC, For Nissan Frontier, For Toyota

Ford Truck(12V/24V):
For Freightliner, For Kenworth, For Peterbilt, For International, For Mack, For Ford, For HD Volvo

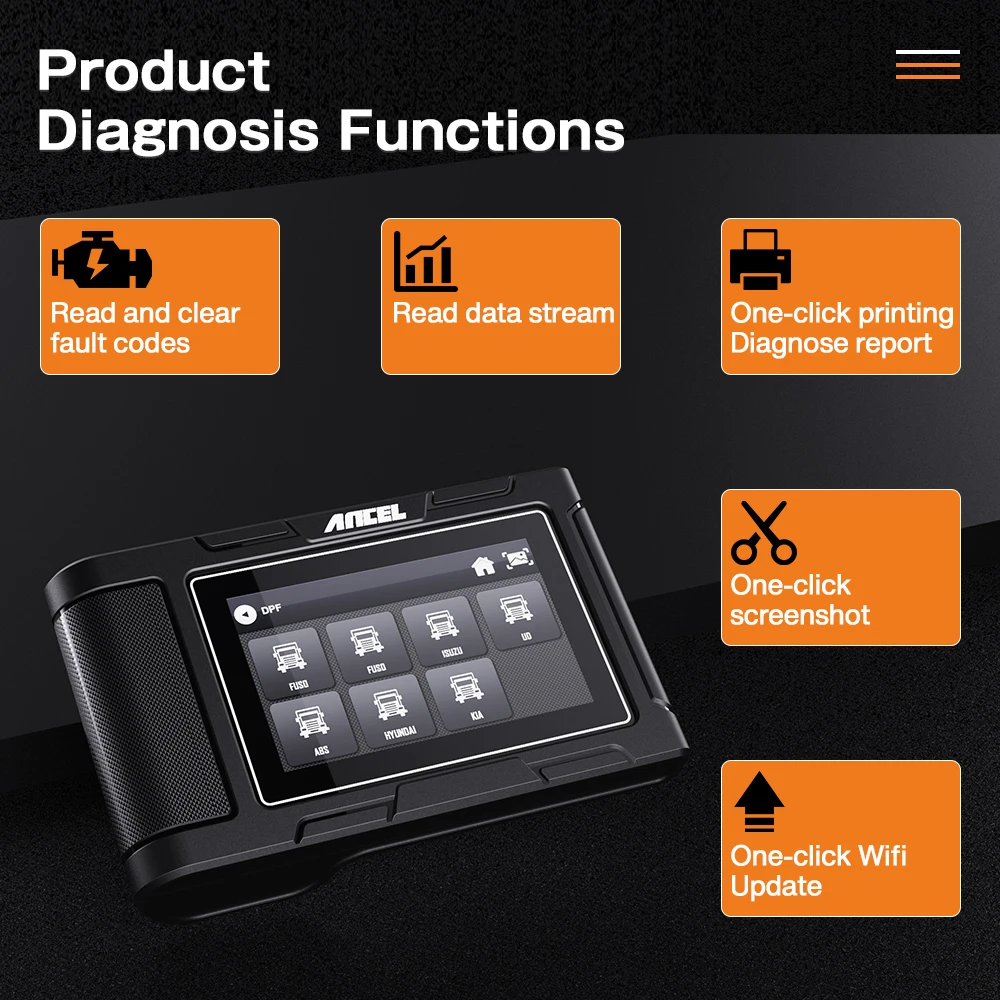

All operations are one-click, so don't worry about not being able to operate anymore!

One-click Activate: This function allows for one-touch activating the scanner tool and you can quickly get started your first truck diagnostic, registration information is optional to fill in. No complex settings are making it a user-friendly auto scanner.
One-click Screenshot: To save important information about vehicle diagnosis, you can take a one-click screen capture, and view the screenshots in “Data Management”.

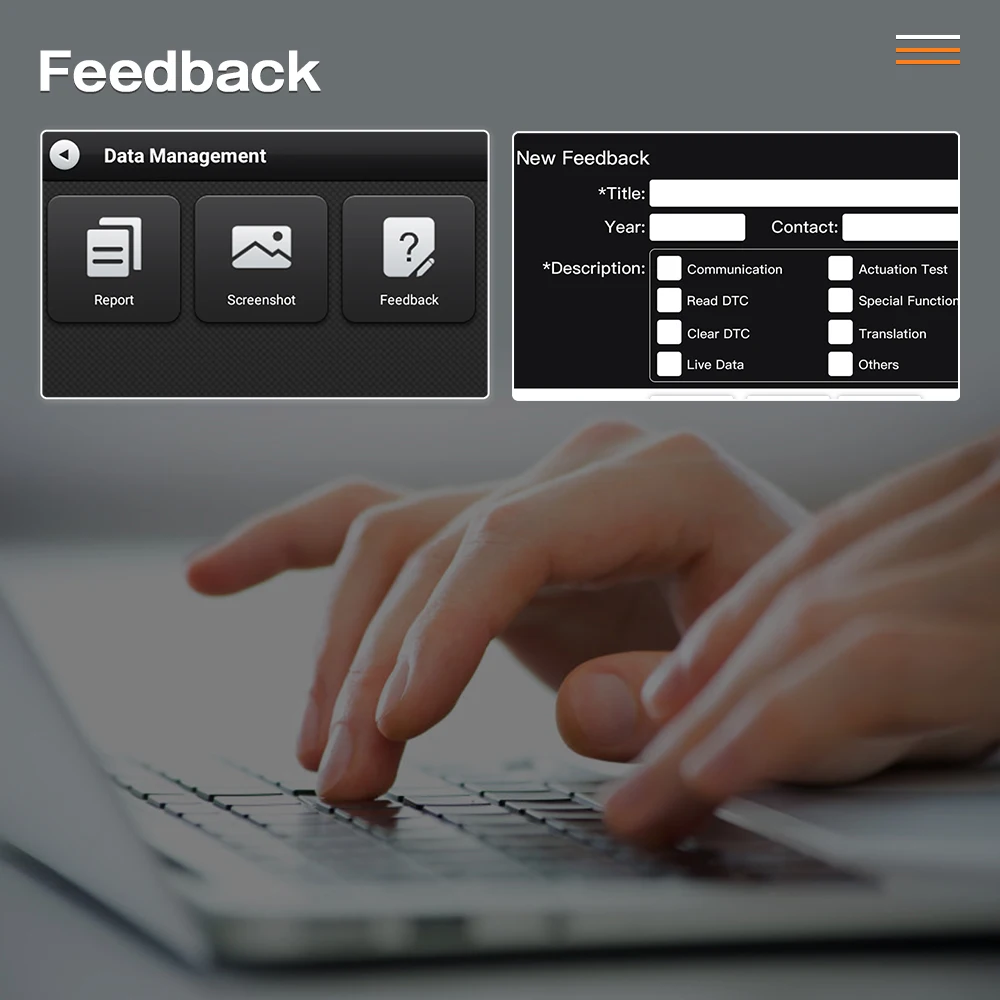

One-click Feedback: This diagnostic tool supports one-click feedback. You can give us your feedback via this function if you have diagnostic problems, ANCEL's professional technical team will provide you with excellent solutions.
One-click WIFI Update: No need to update the computer. By connecting wifi, it will automatically search for the latest update program, just click update, you will get the latest version (more car models, bug fix) of this scanner. You will enjoy a lifetime update through a one-key function.

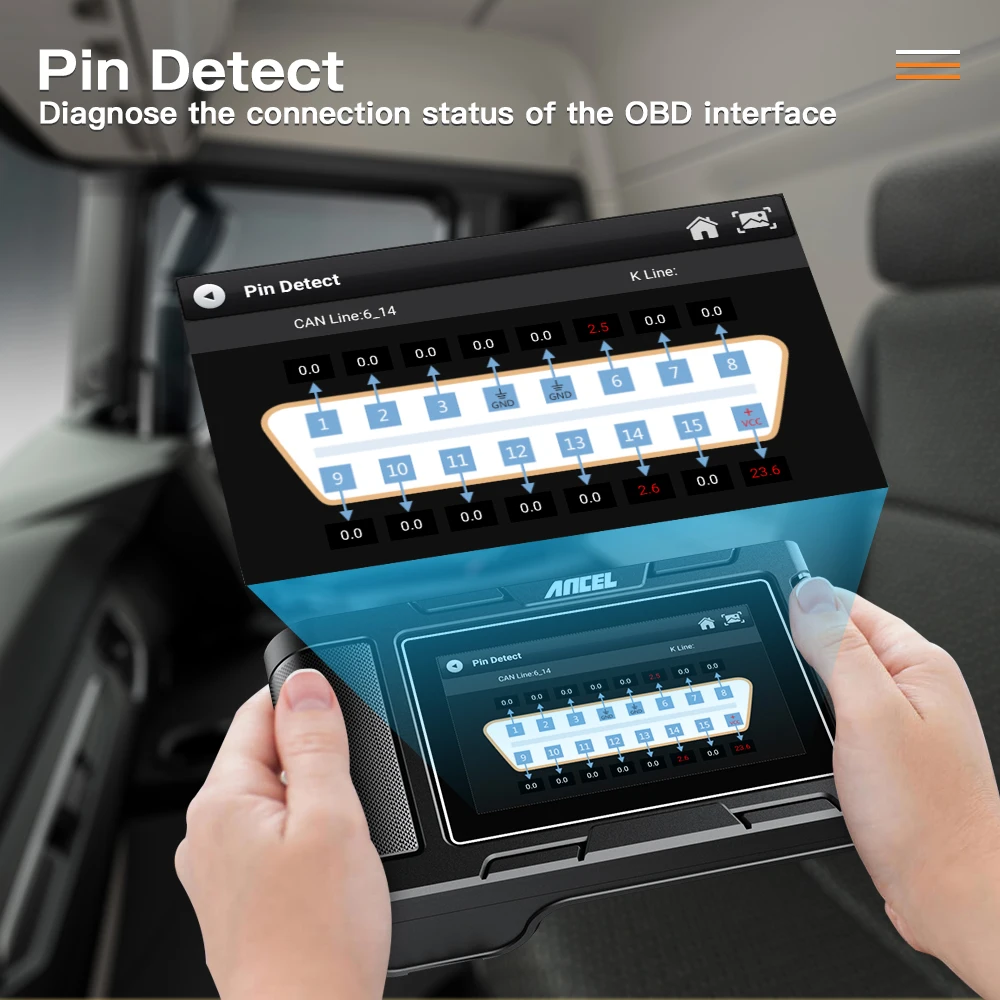

Pin Detect Function

This function mainly automatically measures the voltage of the OBD diagnostic interface, and judges the pin positions of the K line and the CAN line

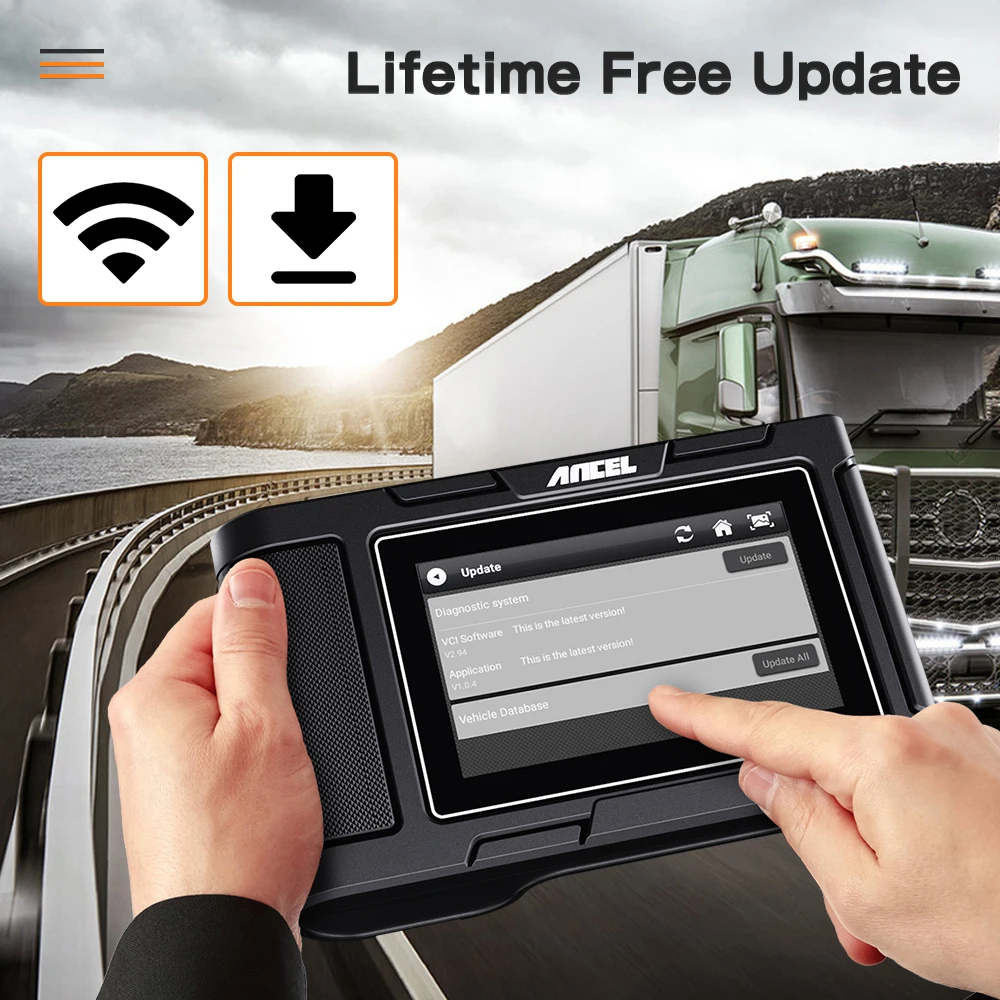

Support Lifetime Free Update via WIFI

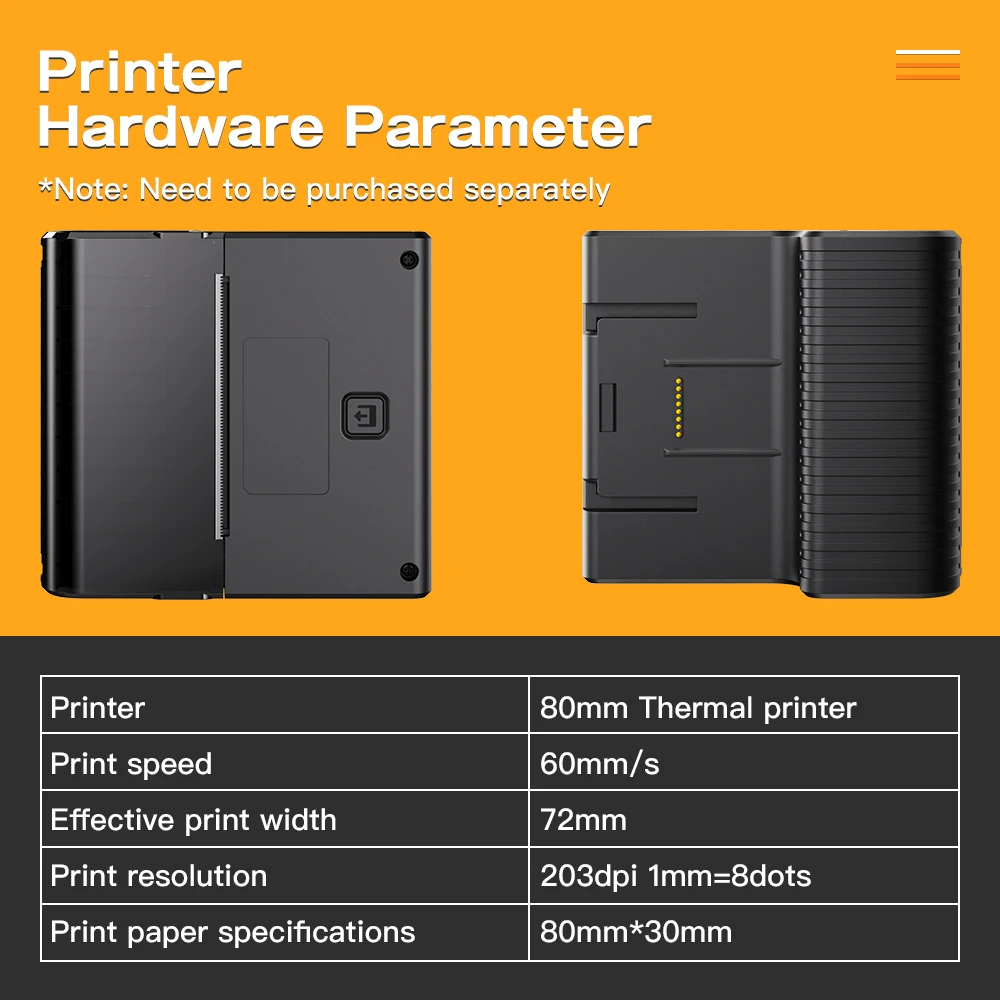

Printer Hardware Parameter

1. Printer 80mm Thermal printer
2. Print speed 60mm/s
3. Effective print width 72mm
4. Print resolution 203dpi 1mm=8dots
5. Print paper specifications 80mm*30mm

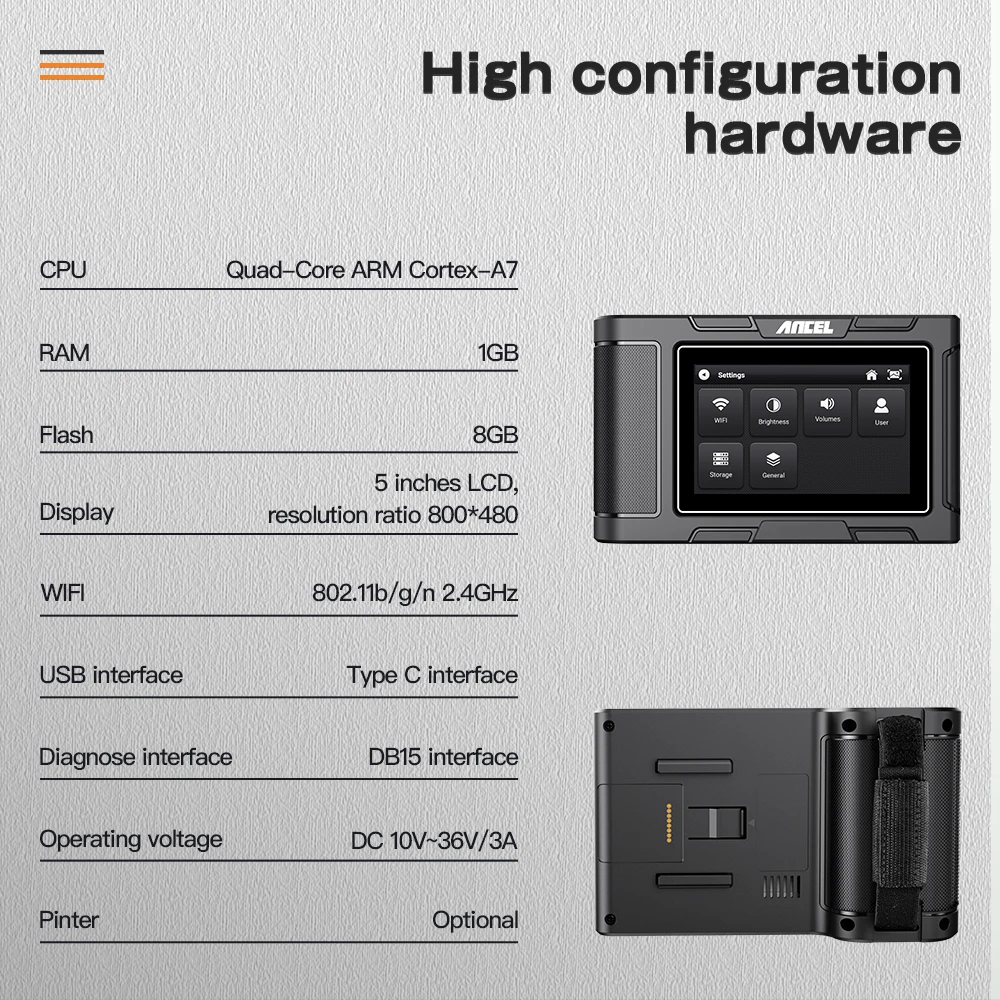

Product High Configuration Hardware

1. CPU Quad-Core ARM Cortex-A7
2. RAM 1GB
3. Flash 8GB
4. Display 5 inches LCD，resolution ratio 800*480
5. WIFI 802.11b/g/n 2.4GHz
6. USB interface Type C interface
7. Diagnose interface DB15 interface
8. Operating voltage DC 10V~36V/3A
9. Pinter Optional



Package List

1pc x ANCEL HD3100
1pc x Packing box
1pc x User Manual

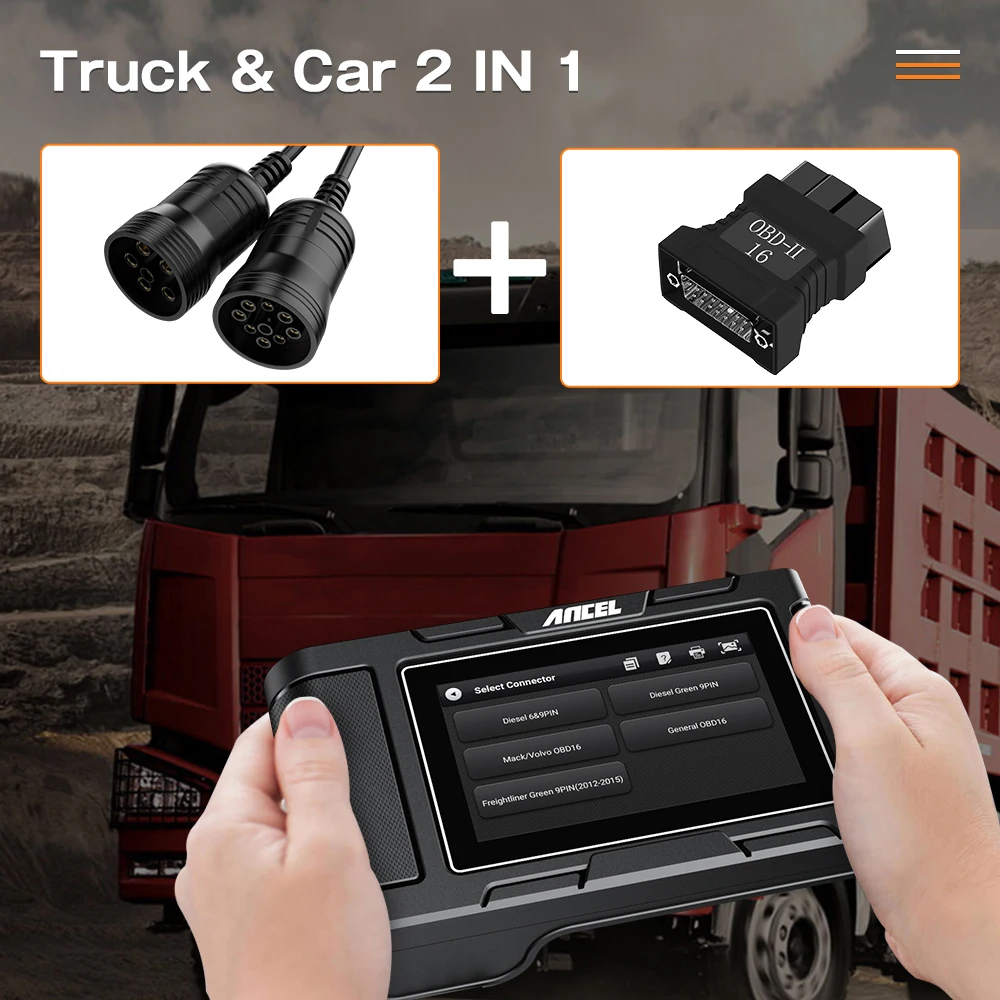

1pc x 6pin & 9pin Connector For Trucks
1pc x 16pin OBD2 Connector For Cars
1pcs Printer (Optional)
