When your car experiences frequent engine shaking, the engine malfunction indicator light on the dashboard suddenly turns on, and there is a significant decrease in power while driving. These could all be signs of a faulty EGR cooler. Behind these issues, your OBD scanner might have already recorded the hidden risks. As a professional service provider in the automotive parts field, we are well aware that 80% of serious mechanical damages originate from hidden faults that were not timely identified in the early stages.
ANCEL's scanners are capable of identifying common fault codes related to the EGR system and providing some real-time data. This helps you quickly pinpoint the root cause of the fault and avoid high subsequent maintenance costs.
The cost of ignoring early diagnosis can be substantial. If you're still worried about EGR cooler failures, eager to know how to identify the symptoms and trace the source of the problem, or searching for a reliable OBD diagnostic tool, this article will unveil the answers for you.
What are the Symptoms of a Bad EGR Cooler?
| Fault Category | Symptoms | Causes | Related Components |
|---|---|---|---|
| Emission Abnormalities | Continuous white smoke from the exhaust pipe. | Coolant leaks into the exhaust system, forming steam due to high temperatures. | Exhaust pipe, EGR valve |
| Emission test failure with strong exhaust odor. | Coolant enters the combustion chamber, disrupting combustion and generating abnormal pollutants. | Combustion chamber, oxygen sensor | |
| Cooling System Issues | Rapid coolant loss with no external leakage. | Cracked cooler/seal failure, causing coolant leaks into the intake manifold or crankcase. | Radiator, oil filter |
| Abnormal engine temperature rise or warning light activation. | Clogged EGR cooler (carbon deposits/sediment) prevents heat dissipation and restricts coolant flow. | Water pump, thermostat | |
| Engine Performance Issues | Loss of acceleration power, rough idling, increased fuel consumption. | Abnormal EGR flow (excessive or insufficient) causing air-fuel ratio imbalance. | Throttle body, ECU |
| Engine overheating or temperature warning light activation. | Insufficient cooling of high-temperature exhaust gas before recirculation, raising combustion chamber heat. | Spark plugs | |
| ECU Monitoring | Check Engine Light illuminates with trouble codes (e.g., P0401, P0489). | ECU detects abnormal EGR system flow or insufficient cooling efficiency. | OBD port, ECU, wiring harness |

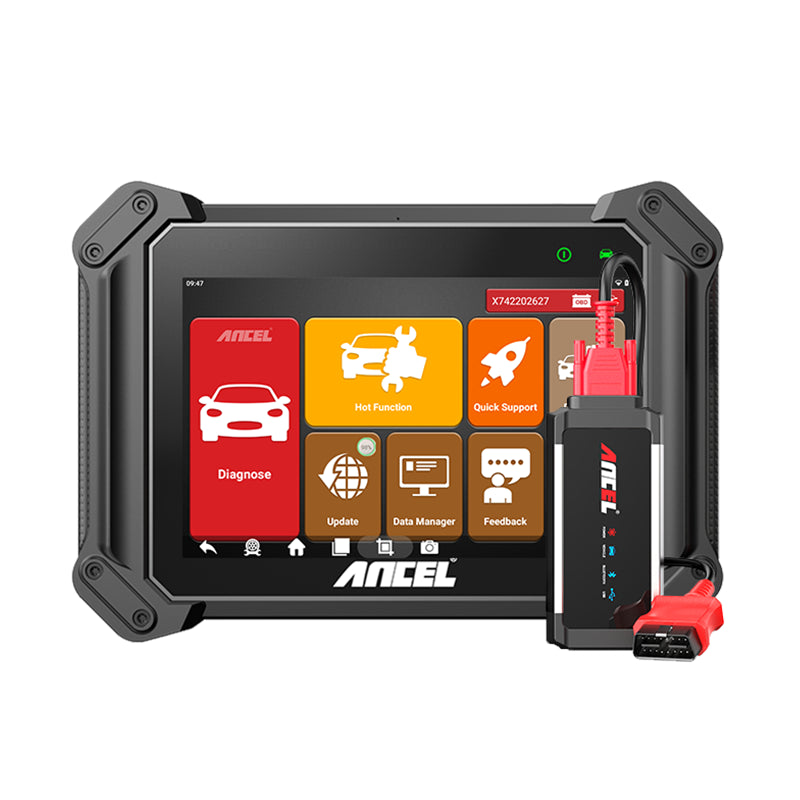

When the engine malfunction indicator light suddenly comes on and fault codes related to the EGR system such as P0401 and P2457 are detected, the ANCEL V6 PRO OBD scanner is an excellent tool. Just connect it to the vehicle's OBD interface, and it can accurately read the fault codes. Based on its built-in professional diagnostic database, the scanner will provide you with clear and understandable fault analysis, which is especially suitable for quickly locating circuit or valve problems.
$439.99
What is an EGR Cooler and why do we need？
The EGR cooler is a crucial component in the engine's emission system, which is responsible for reducing the temperature of the recirculated exhaust gases and ensuring that the exhaust gases reach an appropriate temperature before re-entering the combustion chamber. Its core functions include:
- Reducing exhaust gas temperature
- Optimizing emission efficiency
- Improving fuel economy
We need the EGR cooler mainly to make the tail gas emissions easily meet the environmental protection standards, avoiding traffic restrictions or penalties. Meanwhile, it can enhance our fuel economy.
How to tell the difference between a bad EGR cooler and Blown head gaskets?
| Feature | EGR Cooler | EGR Valve |
|---|---|---|
| Function | Cools exhaust gases to ensure optimal temperature before reintroduction into the intake manifold. | Controls the volume of exhaust gas entering the intake manifold based on engine conditions and ECU commands. |
| Failure Symptoms | Coolant leakage, blockage, engine overheating. | Carbon buildup causing jamming, abnormal flow rates, electrical signal faults. |
| Impact | Directly impacts engine cooling and emissions. | Affects air-fuel ratio and power output. |
| Structure | A complex heat exchange unit with pipes and cooling fins. | Typically an electromagnetic or mechanical valve that adjusts exhaust flow via aperture control. |
The EGR cooler and the EGR valve work in tandem. First, the EGR valve controls the amount of exhaust gas drawn from the exhaust manifold. Then, these exhaust gases enter the EGR cooler for cooling. After that, the cooled exhaust gases flow into the intake manifold to participate in the combustion process.
When the opening degree of the EGR valve increases, the cooler needs to handle a larger volume of high-temperature exhaust gases. If the EGR valve malfunctions, it may lead to an abnormal amount of exhaust gas entering the EGR cooler. On the other hand, if the EGR cooler leaks, the coolant seeping into the EGR valve can cause corrosion or carbon deposition on the valve.
Feature: The position of the EGR valve and the EGR cooler
What to do if your EGR cooler is failing?
A malfunctioning EGR cooler may lead to a decline in engine performance, coolant leakage, or excessive emissions. Here are the detailed handling steps and preventive suggestions:
- Stop the Engine Immediately: If there is an abnormal coolant leakage or the water temperature warning light on the dashboard comes on, you should turn off the engine immediately. Check whether the coolant reservoir is turbid or churning (indicating that exhaust gas has entered the water circuit).
- Top up the Coolant: If the coolant level is lower than the standard due to normal consumption, add coolant immediately to reach the standard level to prevent the engine from being damaged by high temperatures.
- Replace the Engine Oil While the Vehicle is Parked: If the engine oil emulsifies, you need to replace the engine oil and the oil filter immediately, and flush the oil passage to prevent lubrication failure.
- Clean or Replace the EGR Cooler: In case of a slight blockage, you can clean the carbon deposits and scale by flushing the coolant passage and the exhaust gas passage. If there is a severe blockage or leakage, it is recommended to directly replace the EGR cooler with a new one.
How to tell the difference between a bad EGR cooler and Blown head gaskets?
For most car owners, it is quite challenging to distinguish between a malfunctioning EGR cooler and a damaged head gasket. The common symptoms of these two issues, such as white smoke from the exhaust, engine shaking, power loss, and abnormal coolant levels, overlap significantly, making it difficult to determine the problem just by simple observation. However, from the perspectives of maintenance costs and engine performance preservation, accurately differentiating between them is of great necessity.
| Category | Faulty EGR Cooler | Blown Head Gasket |
|---|---|---|
| Core Issue | Failure of exhaust gas cooling system, mixing of coolant and exhaust gas | Seal failure in cylinder block, cross-contamination of coolant/oil/combustion gases |
| Common Causes | Internal corrosion/cracks; clogging from low-quality coolant; thermal stress damage | Engine overheating causing cylinder head deformation; loose/improperly installed cylinder head bolts; uneven cylinder liner protrusion height |
| Unique Symptoms | Wet and sticky carbon deposits on EGR valve; EGR-related fault codes (e.g., P2457, P0401); affects only exhaust recirculation system | Hard starting/stalling (low cylinder compression); water dripping from exhaust/blue smoke (oil burning); multi-system cross-contamination |
| Repair Recommendations | Minor blockages can be cleaned; severe leaks require replacement. | Immediate engine shutdown and repair required. |
Tip: If there is both coolant loss and engine oil emulsification simultaneously, give priority to checking for head gasket problems. If there is only white smoke and the coolant is consumed unidirectionally, the probability of an EGR cooler malfunction is higher.
EGR cooler replacement cost Breakdown
The cost of replacing an EGR cooler is mainly affected by the cost of spare parts and labor costs. Generally speaking, for ordinary family cars, the total cost is approximately between $600 and $2,300. For mid-to-high-end models, it may range from about $1,800 to $5,500. For luxury models or large vehicles, the cost may be more than $6,000.
Key influencing factors of the cost:
- Vehicle model and brand: For ordinary family cars like the Toyota Corolla, the spare parts have high versatility and the cost is relatively low. However, for high-end or luxury models such as the Mercedes-Benz S-Class, a dedicated ECU decoding is required, and the cost will increase significantly.
- Choice of spare parts source: Original equipment manufacturer (OEM) parts have reliable quality assurance but are expensive. Aftermarket parts are cheaper, but their durability may be insufficient.
- Complexity of the fault: If the engine overheats due to a blocked EGR cooler, additional costs may be incurred for repairing the water pump or thermostat.
Can you drive with a bad EGR cooler?
It is not recommended to continue driving when the EGR cooler is damaged.
The reason is that a malfunctioning EGR cooler can trigger a series of problems. It may cause the vehicle to suddenly lose power during driving, making it difficult to overtake other vehicles or climb hills. Moreover, continuing to drive may lead to damage to the engine due to high temperatures, which will significantly increase the subsequent maintenance costs. When you find that the EGR cooler is faulty, you should send the vehicle for repair in a timely manner.
FAQs
Can a faulty EGR cooler cause permanent damage to the engine?
Yes. A failing EGR cooler can leak coolant, overheating the engine. Prolonged high temperatures wear out internal parts like pistons and valves. Abnormal EGR operation also leads to incomplete combustion and carbon buildup, potentially causing permanent damage if untreated.
Can a faulty EGR cooler affect a vehicle's emissions test?
Definitely. The EGR cooler cools exhaust gases to reduce NOx emissions. When it malfunctions, hot exhaust raises combustion temperatures, increasing NOx output. Incomplete combustion also spikes CO and hydrocarbon levels, failing emissions tests.
How often should the new EGR cooler be checked after replacement?
Inspect it after 500 - 1000 km or 1 - 2 months for leaks and stability. Then, check it during regular maintenance (every 5000 - 10000 km or 3 - 6 months) to monitor coolant flow and exhaust temperature.
Can a bad EGR cooler cause loss of power?
Yes. It disrupts exhaust recirculation, unbalancing the air-fuel mix and causing incomplete combustion. Faulty cooling can trigger the ECU's limp mode, severely limiting engine power.
